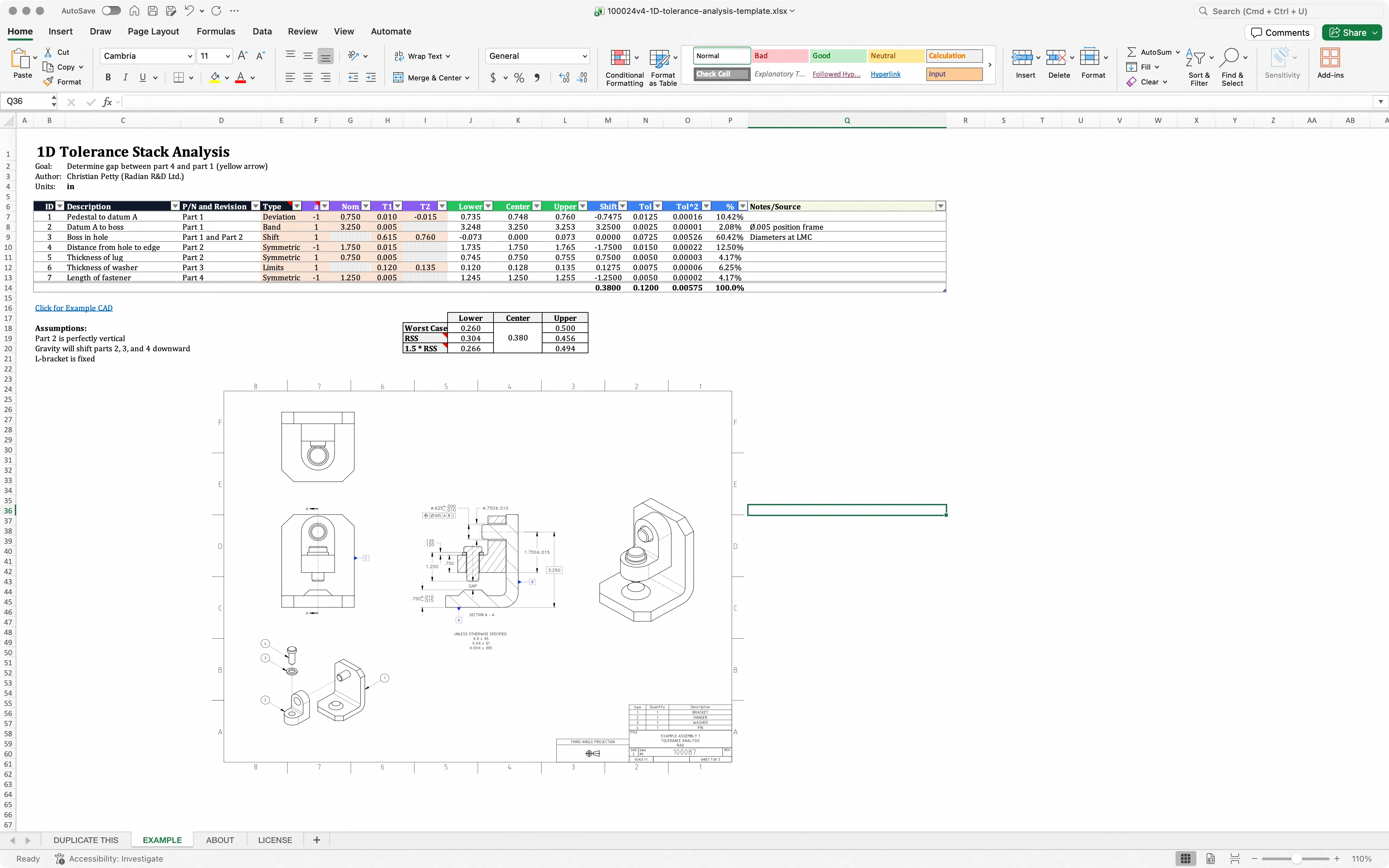

Tolerance analysis template

Excel template.

Releases

VersionChangesDownload
v1Initial release.Download
v2Licensed into public domain.Download
v3Updated link to new documentation page.Download

Farad

Farad can help simplify tolerance analyses. See the same example from the template:

worst_case(stack) => 0.38 inch ± 0.12 inch
rss(stack) => 0.38 inch ± 0.07583 inch
bender(stack) => 0.38 inch ± 0.1137 inch
monte_carlo(stack,100) => 0.3821 inch ± 0.0876 inch
NO ERRORS
Open
